RVI & Fosar.



Sensor Networks High Definition Inspection Systems, PTZ Cameras, Retrieval & sampling Tools

​

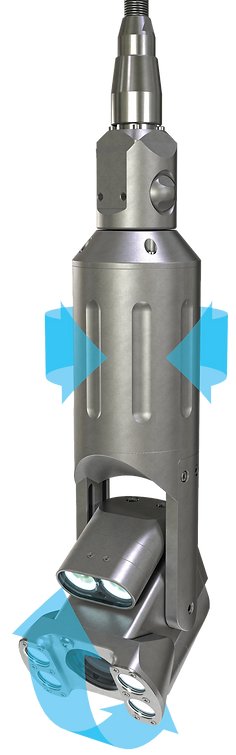

HI-DEF PTZ-x



A portable pan-tilt-zoom-lights, high resolution, colour video inspection system loaded with features to efficiently inspect tanks, vessels, drums, building voids, and other large confined spaces and piping systems.

​

variable-speed
360-deg continuous rotation

submersible to 30 Mtrs

integral & optional
auxiliary LED lamps

full-HD camera with sensitivity control for reflective surfaces

corrosion-resistant nickel-plated aluminum with stainless steel

30x or 10x optical zoom lens variable-speed 270-deg tilt

 variable-speed 270-deg tilt

INNOVATION & EFFICIENCY



HI-DEF PTZx is a portable, Pan-Tilt-Zoom-Lights, fully high-definition (1920×1080), color video inspection system loaded with features to efficiently inspect tanks, vessels, drums and other large confined spaces and piping systems.  State-of-the-art integral white LEDs provides over 2000 lumens of cool white-light along with add-on auxiliary lighting to brighten the darkest of environments.

​

NEW 75MM PTZx CAMERA HEAD

At just 75mm in diameter, we give you the tools to conduct inspections in places previously difficult to reach. This camera was built to operate in tight areas without compromising image quality or performance.

FEATURES COMMON TO BOTH CONTROLLERS

  • Adjustable zoom lens
  • Auto/manual Focus
  • Adjustable light intensity
  • Adjustable video brightness
  • Camera position memory
  • Date/time/position/temperature video display
  • Mounting for monitor/recorder
  • Two HDMI digital video connections
  • 12V accessory power

INTERGRATED SYSTEM ON DRUM REEL

  • Portable cable reel with built-in controller
  • Camera dock for one-handed carry
  • 150ft (45m) capacity
  • Universal pwer input 100-240VAC 50/60Hz

MODULAR SYSTEMS

  • Rack-shelf or desktop use
  • Light and small portability
  • Low-power DC input, UL-approved power supply
  • Cable extension up to 500ft (150m)

WANT TO SEE HOW HI-DEF PTZx COULD BE USED WITH YOUR BUSINESS?

Sensor Networks Inc.



Sensor Networks specialise in the design and fabrication of industrial ultrasonic transducers and tooling for demanding in-situ test and inspection applications. Engineered for precision, ease of use and maximum durability, their range includes ultrasonic transducers, fixtures and couplant delivery systems.

Please contact us for enquiries regarding the Sensor Networks range.

​

SNI's deep domain expertise enhances NDT solutions through the selection, design and optimization of the ultrasonic technique. Offering a wide range of top-of-the-line standard transducers, our skilled engineers, technicians, assemblers and general managers bring the very best of the best to the table.

​

Standard Transducers

Model CR Standard Contact Transducers



The larger element sizes of Model CR provide greater scan widths and penetration for applications such as plate, billet, bars, thick-section parts, pipe, and tanks. They have side-mounted BNC connectors and removable comfort grip to reduce operator fatigue. GP Series* offer the best combination of sensitivity and resolution.

​

Model F Fingertip Contact Transducers



Model F are small diameter transducers with side-mounted Microdot connectors. GP series* offer the best combination of sensitivity and resolution for most applications. HR series* are highly damped for applications where high resolution is required. C series* have piezocomposite elements and offer superior penetration in highly-attenuative materials. All Model F transducers feature an ergonomic design for improved operator control and comfort.

​

Model DFR Fingertip Delay-Line Transducers



Model DFR are small-diameter delay-line transducers with side-mounted Microdot connectors. Removable delay lines and highly damped piezoceramic elements enable measurement of very thin parts or detection of small near-surface flaws. Delay lines can be contoured for improved coupling to I.D. or O.D. curved parts. Custom sizes and shapes also available upon request.

​

Replaceable Delay-Line Pencil Probes



Pencil probes are designed for applications requiring a very small contact face, such as curved turbine blades or thickness measurement from the inside of a pit. They can be used with most flaw detectors and precision thickness gauges. Interchangeable delay lines are tapered to tip diameters of 0.065 inch (1.7 mm) and 0.090 inch (2.3 mm). Replaceable delay lines are available in packs of 10. The straight model features a removable handle, which also allows it to be used as a fingertip probe. All models have Microdot connectors.

​

Model DU Dual-Element Contact Transducers



Model DU are general purpose dual-element transducers with side-mounted microdot connectors. Replaceable/interchangeable delay lines and cross-talk barriers greatly extend versatility, cost-effectiveness, service life, and can be contoured to fit I.D. or O.D. curved surfaces.

​

Model ADP Dual-Element Contact Transducers



Model ADP are small-diameter, low-profile transducers with 2 fixed co-axial cable and BNC connectors (also available with Lemo-00 upon request). They are especially suitable for flaw detection and thickness measurement on pitted, curved, and irregular surfaces. Because the elements are mounted on internal delay lines they can be contoured to fit I.D. or O.D. curved surfaces.

​

Angle Beam Transducers AWS, SWS, QS, MSWS



  • Model AWS transducers and wedges meet the requirements of American Welding Society Structural Welding Code D1.1 and Bridge Welding Code D1.5. Transducers are available with piezoceramic elements (GP series*) and piezocomposite elements (C series*).

​

  • Model SWS are designed for general weld inspection and other applications such as pipes, tanks, pressure vessels, forgings, and castings. They have top mounted BNC connectors and are available with piezocomposite elements (C series*). Interchangeable acrylic wedges provide maximum versatility and service life.

​

  • Model QS features Quick Swap screw-in wedge attachment. They are available with top-mounted Microdot (MD) or new MCX low-profile swivel connectors. Piezocomposite (C series*) offer superior penetration and signal-to-noise ratio in highly-attenuative and coarse-grain materials.

​

  • Model MSWS have captive screws for wedge attachment and angled Microdot connectors for applications requiring low profile. Piezocomposite (C series*) offer superior penetration and signal-to-noise ratio in highly-attenuative and coarse-grain materials.

Model MWB+/MWK+ Angle-Beam Transducers



Models MWB+ and MWK+ are small transducers with side or top-mounted Microdot connectors and integral wedges for maximum versatility. GP Series* (MWB+) offer the best combination of sensitivity and resolution. C series* (MWK+) with piezocomposite elements offer superior resolution, penetration, and signal-to-noise ratio in highly-attenuative and coarse-grain materials such as austenitic stainless steel or cast iron.

TOFD Angle-Beam Transducers



Time-Of-Flight Diffraction (TOFD) is a method used to determine the size of cracks in metallic welds. It requires highly-damped, broadband transducers and wedges that generate refracted longitudinal waves (L-waves). SNI’s TOFD transducers have state-of-the-art piezocomposite elements (C series*) and Quick Swap screw-in wedge attachment. Straight-mounted connectors are Microdot (3/8-32) or Lemo-00 (M12 case).

Immersion Transducers

​

  • Model I1 are small-diameter, pencil-type transducers with straight-mounted Microdot connectors. Because the connectors are not waterproof, sealing with non-water-soluble grease is recommended. GP series* offer the best combination of sensitivity and resolution for general applications. HR series* are highly damped for applications where high resolution is required. C series* have piezocomposite elements and offer superior penetration, resolution, and signal-to-noise ratio in highly-attenuative and coarse-grain materials.



  • All model I2, I3, and I4 transducers have straight-mounted waterproof UHF connectors. Available I2 element diameters are 0.25, 0.375 and 0.5 inch (6, 10, and 13mm). I3 have 0.75 inch (19mm) and I4 have 1.0 inch (25mm) element diameters. GP series* offer the best combination of sensitivity and resolution for general applications. HR series* are highly-damped for applications where high resolution is required. C series* have piezocomposite elements and offer superior penetration, resolution, and signal-to-noise ratio in highly-attenuative and coarse-grain materials.

​

  • Model IR transducers have right-angle-mounted waterproof UHF connectors and small case design for applications where space is limited. Available element diameters are 0.25, 0.375, and 0.5 inch (6, 10, and 13 mm). GP series* offer the best combination of sensitivity and resolution for general applications. HR series* are highly damped for applications where high resolution is required. C series* have piezocomposite elements and offer superior penetration, resolution, and signal-to-noise ratio in highly-attenuative and coarse-grain materials.

​

  • Paintbrush Transducers are single-element immersion transducers which give a greater scanning width than conventional transducers with round or rectangular elements. They are often used in scanning tanks where large plates, bars, and other parts are tested which have large surface areas. Their large coverage decreases scan time dramatically. Like other conventional probes, they can be ordered with GP*, HR* or C* performance and are available in flat or cylindrical focuses.

​

Model IR Immersion Transducers



Model IR transducers have right-angle-mounted waterproof UHF connectors and small case design for applications where space is limited. Available element diameters are 0.25, 0.375, and 0.5 inch (6, 10, and 13 mm). GP series* offer the best combination of sensitivity and resolution for general applications. HR series* are highly damped for applications where high resolution is required. C series* have piezocomposite elements and offer superior penetration, resolution, and signal-to-noise ratio in highly-attenuative and coarse-grain materials.

Model IR Immersion Transducers



Model IR transducers have right-angle-mounted waterproof UHF connectors and small case design for applications where space is limited. Available element diameters are 0.25, 0.375, and 0.5 inch (6, 10, and 13 mm). GP series* offer the best combination of sensitivity and resolution for general applications. HR series* are highly damped for applications where high resolution is required. C series* have piezocomposite elements and offer superior penetration, resolution, and signal-to-noise ratio in highly-attenuative and coarse-grain materials.

Paintbrush Transducers



Paint Brush are single-element immersion transducers which give a greater scanning width than conventional transducers with round or rectangular elements. They are often used in scanning tanks where large plates, bars, and other parts are tested which have large surface areas. Their large coverage decreases scan time dramatically. Like other conventional probes, they can be ordered with GP*, HR* or C* performance and are available in flat or cylindrical focuses.

70mm Max JAW Opening


A variety of interchangeable end-effectors

Aluminium with stainless steel

The Future of F.O.S.A.R.



JAWS 2.0TM is a rugged, motorized retrieval tool with integral HDTV camera and LED Lighting. It is easy to use, robust, submersible, and works in any industrial environment. JAWS 2.0 is available as a basic kit or as part of an ultimate loose-parts retrieval kit.

​

robust

​

• aircraft-grade aluminium body
• stainless steel jaws
• halogen-free polyurethane cable jacket

​

compact

​

• fits through 1.5” (38mm) openings
• fits through 4“ (100mm) diameter elbows

​

capable

​

• jaws open 2.75” (70mm)
• tool submerges to 100’ (30m)
• system deploys anywhere on batteries (12 Vdc, 15W NiMH)

Complete Control



Connected via 50′ TPE cable, the JAWS2.0™ unit is controlled with a wired controller that features both movability and visual. This all-in-one device helps users to locate objects and quickly and easily remove them, without the need for additional retrieval and monitoring equipment.
The JAWS 2.0™ controller sports a 5” (127 mm) Industrial-grade 1080p HD (1920×1080 pixel) color and sunlight-readable display with a hardened glass face. Sensor Networks Inc. pushes to make the JAWS unit easy to operate and built ready to go. The controller is battery-operated with a 4-6 hour battery life, a built-in life save function and a quick recharge time of 2 hours.

​

BUILT FOR MANY APPLICATIONS

The JAWS2.0 unit is designed to swap out end-effectors for use in a wide variety of situations. Not only does the unit efficiently retrieve foreign objects, but the wide range of attachments allows for a much broader use for the JAWS unit, such as sampling and instrument placement.

left to right:

• SAMPLING CUPS • SERRATED JAWS • FORK & TINE • NEEDLE NOSE • CURVED SERRATED JAWS • LONG SERRATED JAWS • HOOK • SMALL MAGNET • LARGE MAGNET • SNARE •

​

​

​

​
